Amolee - SS/CS Valves

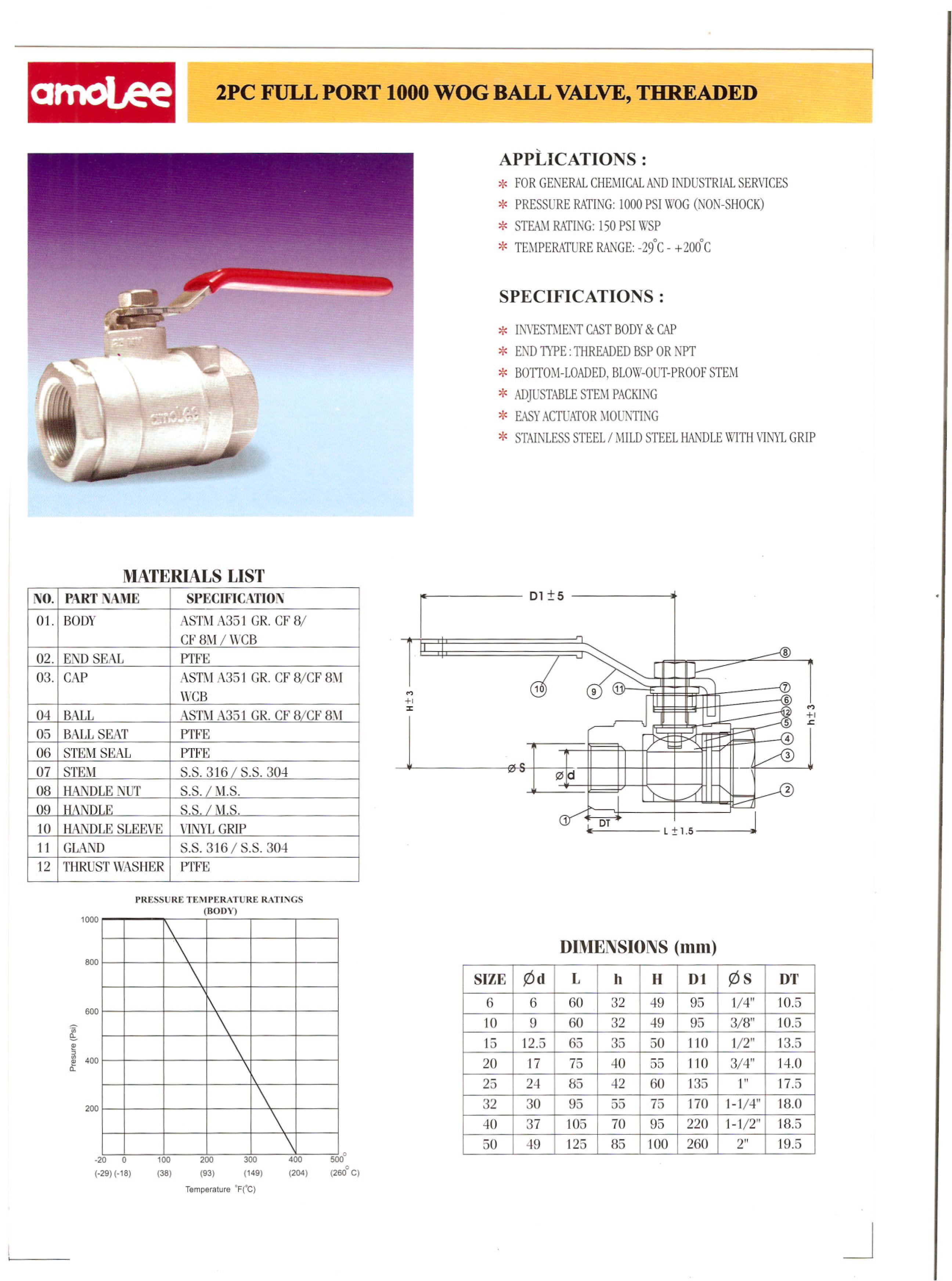

APPLICATIONS:

• For General Chemical & Industrial Services
• Pressure Rating: 1000 PSI WOG (NON-SHOCK)
• Steam Rating: 150 PSI WSP
• Temperature Range: -29°C - +200°C

SPECIFICATIONS:

• Investment Cast Body & Cap
• End Type Threaded BSP or NPT
• Bottom-Loaded, Blow_Out-Proof Stem
• Adjustable Stem Packing
• Easy Actuator Mounting
• Stainless Steel/Mild Steel Handle with Vinyl Grip

MATERIAL LIST: (Compare with Diagram)

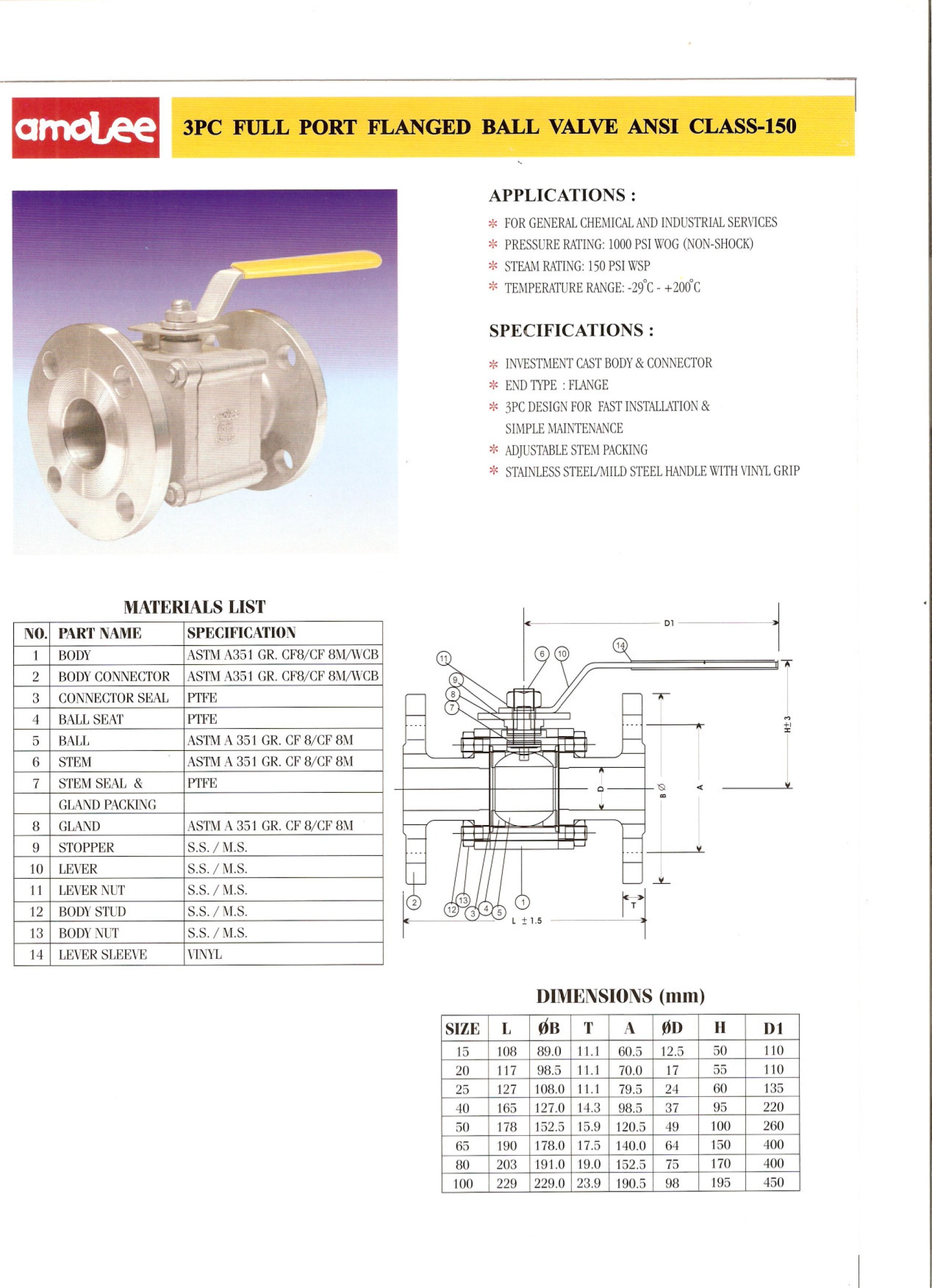

APPLICATIONS:

• For General Chemical & Industrial Services
• Pressure Rating: 1000 PSI WOG (NON-SHOCK)
• Steam Rating: 150 PSI WSP
• Temperature Range: -29°C - +200°C

SPECIFICATIONS:

• Investment Cast Body & Connector
• End Type: Flange
• 3pc Design for Fast Installation & Simple Maintenance
• Adjustable Stem Packing
• Easy Actuator Mounting
• Stainless Steel/Mild Steel Handle with Vinyl Grip

MATERIAL LIST: (Compare with Diagram)

APPLICATIONS:

• For General Chemical & Industrial Services
• Pressure Rating: 1000 PSI WOG (NON-SHOCK)
• Steam Rating: 150 PSI WSP
• Temperature Range: -29°C - +200°C

SPECIFICATIONS:

• Steam Rating: 150 PSI
• Blow-Out_Proof Stem Design
• Body: ASTM A351 Gr. CF8/CF8M/WCB
• Ball: CF8/CF8M
• Stem: SS316
• Seat: Reinforced Teflon
• End Connections:
• Threaded End
• Socket Weld End
• Butt Weld End
• Working Pressure: 1000 PSI
• Temperature Range: -50 to 450F
• Test Standard: API 598
• Vacuum Service to 29" Hg

MATERIAL LIST: (Compare with Diagram)

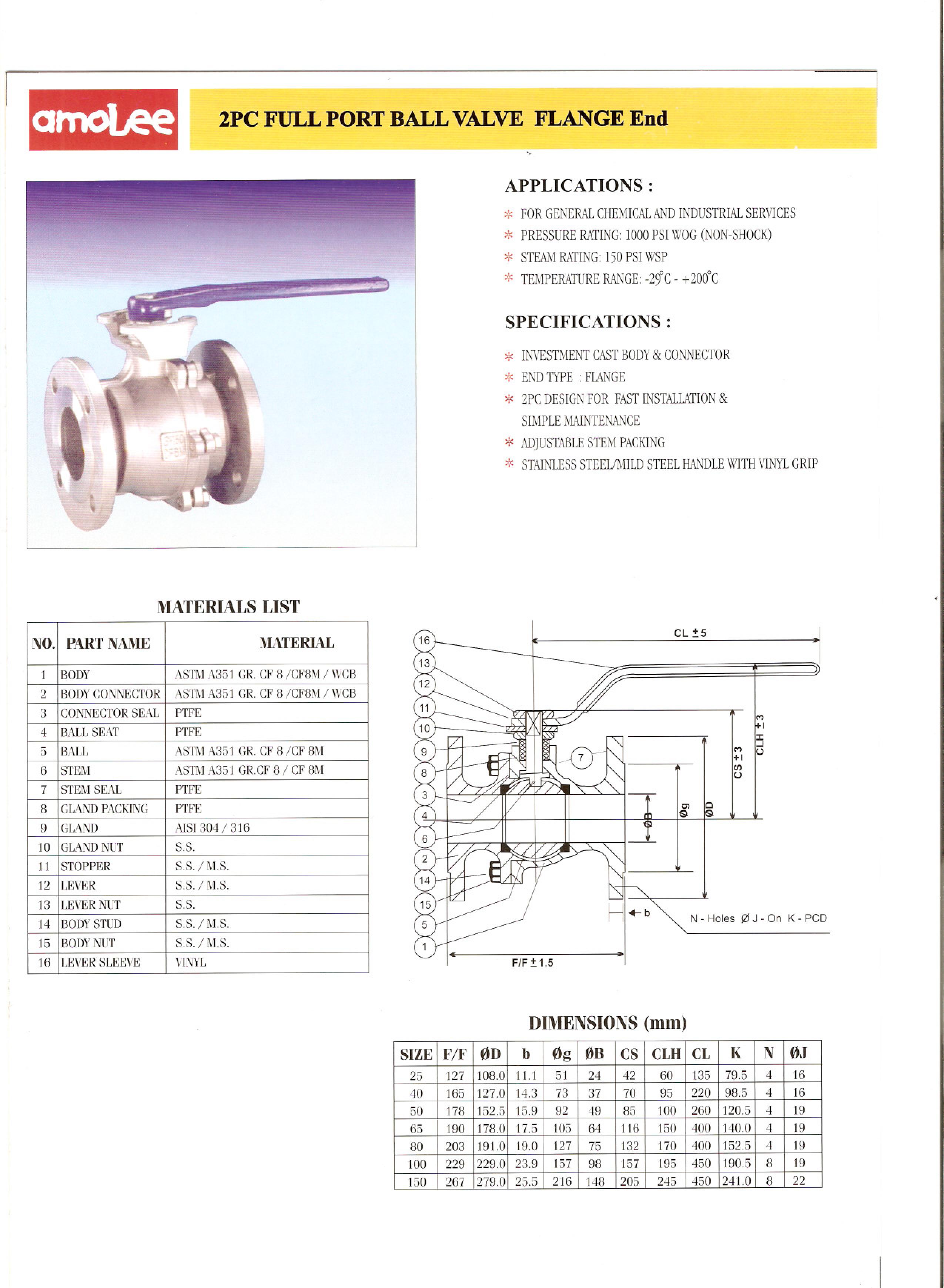

APPLICATIONS:

• For General Chemical & Industrial Services
• Pressure Rating: 1000 PSI WOG (NON-SHOCK)
• Steam Rating: 150 PSI WSP
• Temperature Range: -29°C - +200°C

SPECIFICATIONS:

• Investment Cast Body & Connector
• End Type: Flange
• 2pc Design for Fast Installation & Simple Maintenance
• Adjustable Stem Packing
• Easy Actuator Mounting
• Stainless Steel/Mild Steel Handle with Vinyl Grip

MATERIAL LIST: (Compare with Diagram)

APPLICATIONS:

• For General Chemical & Industrial Services
• Pressure Rating: 1000 PSI WOG (NON-SHOCK)
• Steam Rating: 150 PSI WSP
• Temperature Range: -29°C - +200°C

SPECIFICATIONS:

• Rising Stem
• Body: ASTM A351 GR. CF8M/CF8
• ASTM A 216 GR. WCB
• Bonnet: ASTM A 315 GR. CF8M/CF8
• ASTM A 216 GR. WCB
• DISC: Renewable ASTM A 315 GR. CF8M
• Stem: S.S. 316
• End Type: Flange End Class ASA-150
• Test Standard: API 598
• Pressure & Temperature: Ratings in Accordance with ASME/ASTM B 16.34

MATERIAL LIST: (Compare with Diagram)

APPLICATIONS:

• For General Chemical & Industrial Services
• Pressure Rating: 1000 PSI WOG (NON-SHOCK)
• Steam Rating: 150 PSI WSP
• Temperature Range: -29°C - +200°C

SPECIFICATIONS:

• Lift Type
• Body: ASTM A351 GR. CF8M/CF8
• ASTM A 216 GR. WCB
• Cover: ASTM A 315 GR. CF8M/CF8
• ASTM A 216 GR. WCB
• Seat & Plug: ASTM A 315 GR. CF8M/CF8
• End Type: Flange End ANSI B1 6.5 Class 150
• Test Standard: API 598
• Pressure & Temperature: Ratings in Accordance with ASME/ASTM B 16.34

MATERIAL LIST: (Compare with Diagram)

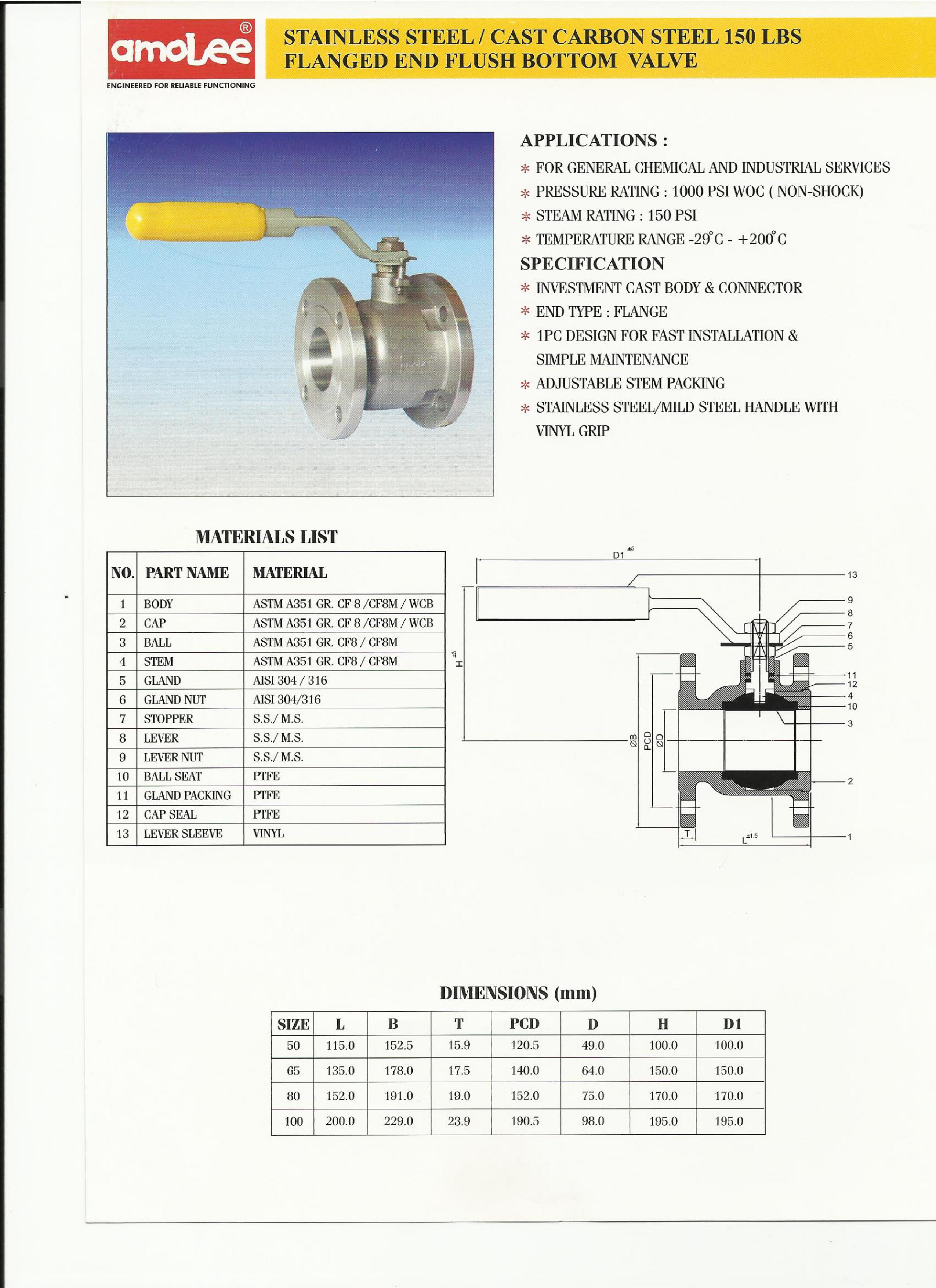

APPLICATIONS:

• For General Chemical & Industrial Services
• Pressure Rating: 1000 PSI WOG (NON-SHOCK)
• Steam Rating: 150 PSI WSP
• Temperature Range: -29°C - +200°C

SPECIFICATIONS:

• Investment Cast Body & Connector
• End Type: Flange
• 1pc Design for Fast Installation & Simple Maintenance
• Adjustable Stem Packing
• Stainless Steel/Mild Steel Handle with Vinyl Grip

MATERIAL LIST: (Compare with Diagram)

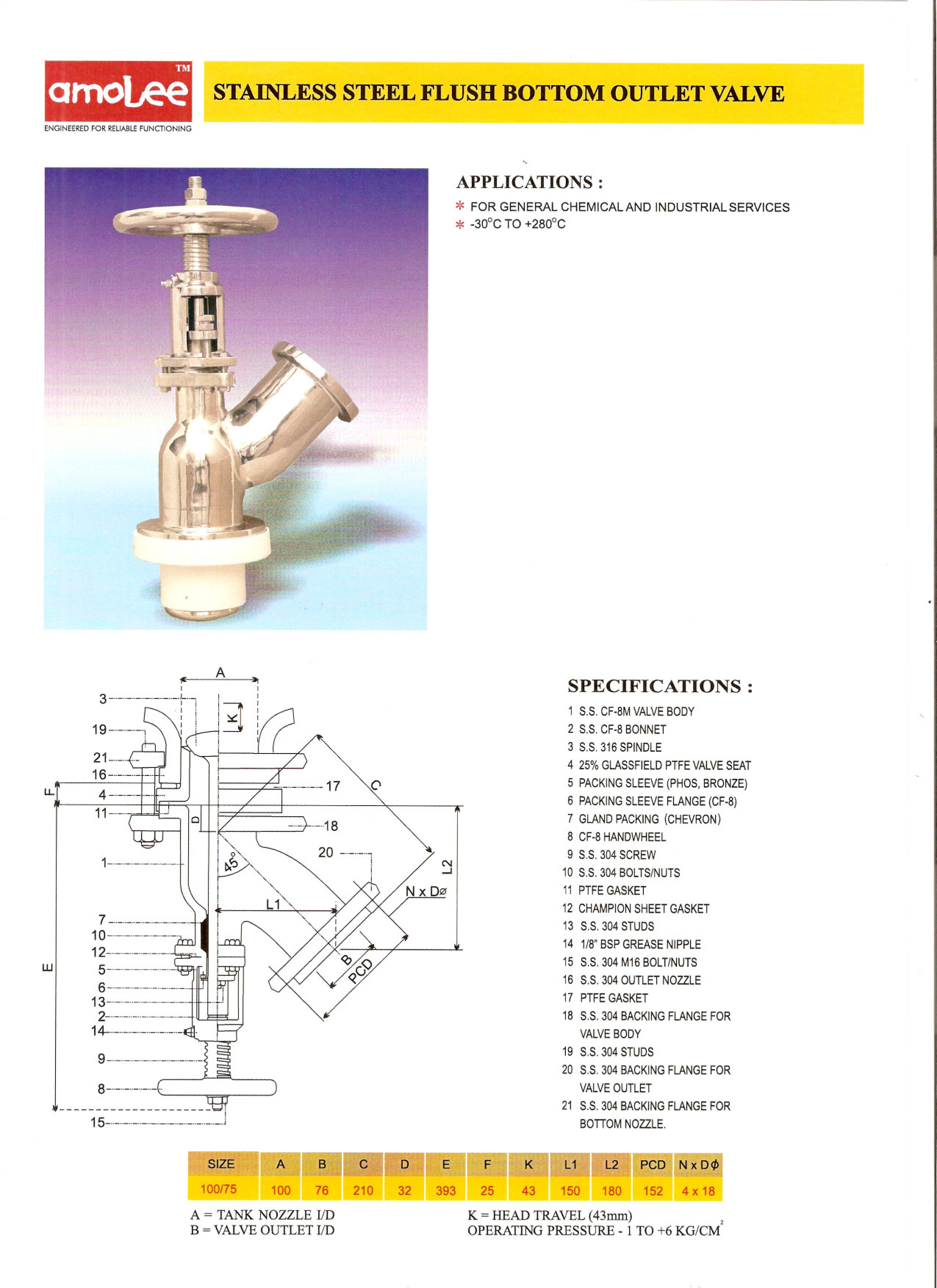

APPLICATIONS:

• For General Chemical & Industrial Services
• -30°C to +280°C

SPECIFICATIONS:

• SS CF8M Valve Body
• SS CF8 Bonnet
• SS 316 Spindle
• 25% Glassfield PTFE Valve Seat
• Packing Sleeve (PHOS, Bronze)
• Packing Sleeve Flange (CF8)
• Gland Packing (Chevron)
• CF8 Handwheel
• SS 304 Screw
• SS 304 Bolts/Nuts
• PTFE Gasket
• Champion Sheet Gasket
• SS 304 Studs
• 1/8" BSP Grease Nipple
• SS 304 M16 Bolt/Nuts
• SS 304 Outlet Nozzle
• PTFE Gasket
• SS 304 Backing Flange for Valve Body
• SS 304 Studs
• SS 304 Backing Flange for Valve Outlet
• SS 304 Backing Flange for Bottom Nozzle
