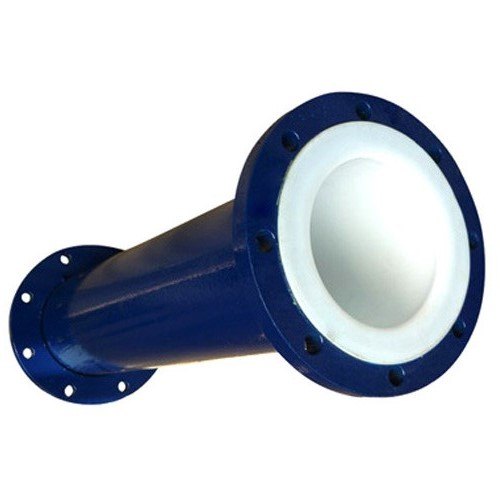

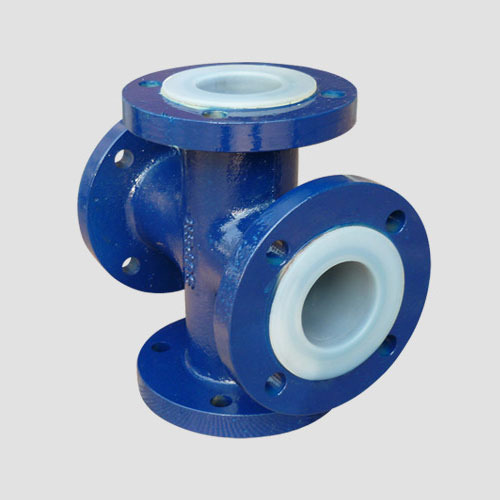

PTFE Lined Pipe Fittings & Valves

KEY FEATURES:

• High strength
• Application specific structure
• Withstand high pressure
• Rust resistance

BODY MATERIAL:

Ductile Iron ASTM A395
• Cast steel ASTM A216 Gr. WCB
• Cast Iron IS2108 FG 260
• ASTM A351 Gr.CF8 / AISI S.S. 304
• ASTM A351 Gr.CF8M / AISI S.S. 316

We have technically expert workforce to provide the clients with high quality PFA Lined Ball Valves.

KEY FEATURES:

• High strength
• Application specific structure
• Withstand high pressure
• Rust resistance

BODY MATERIAL:

• · Ductile Iron ASTM A395
• · Cast steel ASTM A216 Gr. WCB
• · Cast Iron IS2108 FG 260
• · ASTM A351 Gr.CF8 / AISI S.S. 304
• · ASTM A351 Gr.CF8M / AISI S.S. 316

Product Details:

• Super provides Lind Swing check Valves from 80 NB to 300 NB
• Lind Ball Check Valves can be Lined With PFA/FEB/Antistatic PFA/PP/HDPE/PVDF
• MOC of the body and END piece is CS/SS+3MM THK 3MM. PFA/FEP/Antistatic FEP /PP/HDPE/PVDF Lined.
• This valve are tested visually /dimensionally /Hydro test(Body Test, Sheet Test)/Spark Test at 15 KVA

MATERIAL LIST: (Compare with Diagram)

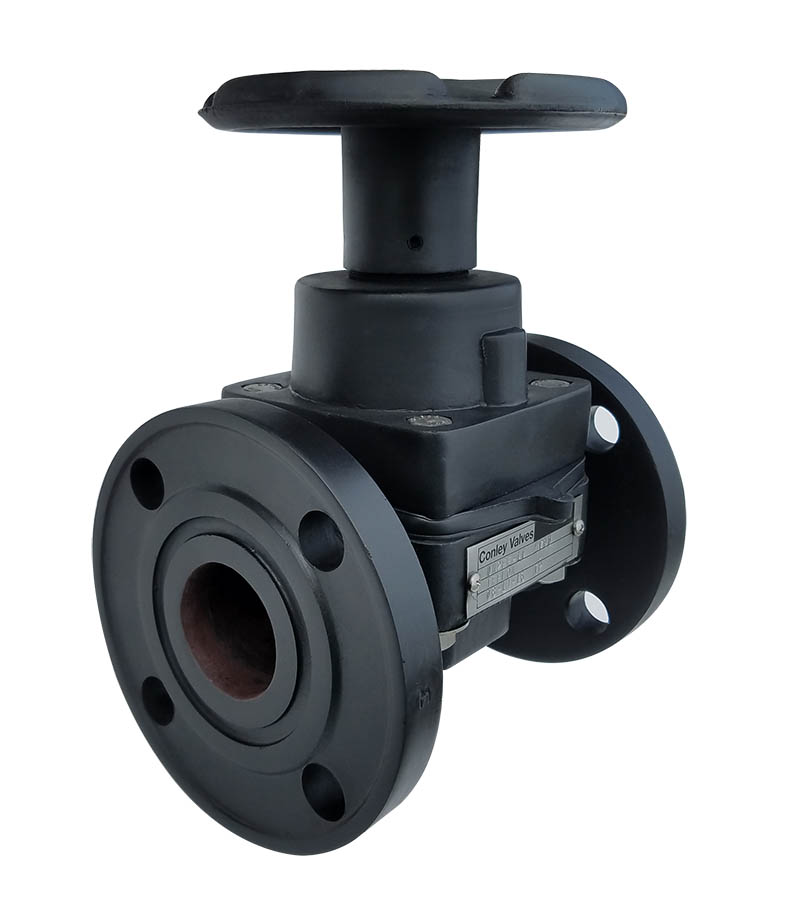

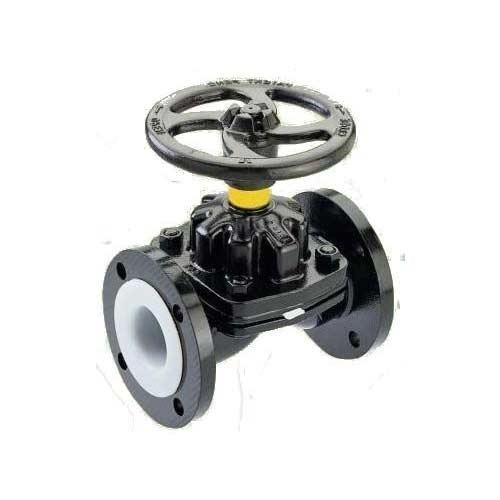

Super provides Diaphragm Valves from 15 NB to 200 NB

• Lined Diaphragm canlinedin PFA/FEP/Antistatic PFA/PP/HDPE/PVDF
• Lined Diaphragm Valves are mounted with Actuator as per client Request
• MOC of the body is WCB/ CS/SS + PFA/FEP/PVDF Lined. Lining Thickness: min. 3 MM
• We are offering Handle/Gear/Actuator Valves as per Clients Request.
• This valve are tested visually /dimensionally /Hydro test(Body Test, Sheet Test)/Spark Test at 15 KVA

Product Details:

Features:

• High durability
• Strong construction
• Trouble free performance
• User friendly
• Application specific structure
• Corrosion Resistance

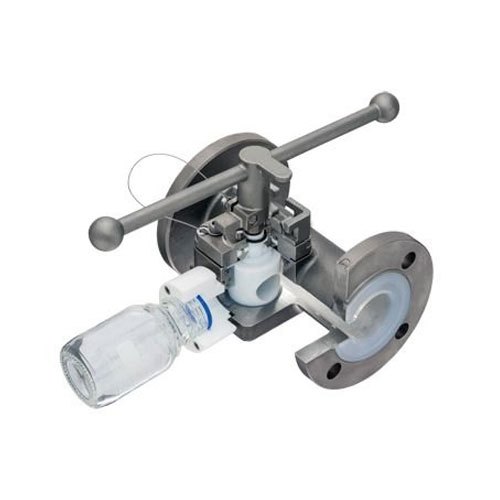

• Easy Collection of Sample for sampling

BODY MATERIAL:

• Ductile Iron ASTM A216 Gr. WCB
• ASTM A351 Gr.CF8 / AISI S.S. 304
• ASTM A351 Gr.CF8M / AISI S.S. 316

Features:

• Longer functional life
• Sturdy construction
• Low fluid friction loss
• Anti-corrosive

MATERIAL LIST: (Compare with Diagram)

Product Details:

We are engaged in offering Teflon Lined Butterfly Valves to the clients.

Features:

• Leakage-proof
• Corrosion resistance
• Reliable performance
• Torque-free

Technical Specifications:

• Size: 25 NB to 300 NB
• Outer body: ASTM A 395 Gr 60-40-18
• Face to face: ANSI B 16.10
• Spark test: at 15 KVA
• Flange connection: ANSI B 16.5
• Hydro test: at 29.8 kg/cm²

Features:

• Leakage-proof
• Corrosion resistance
• Reliable performance
• Torque-free

Technical Specifications:

• Size: 25 NB to 300 NB
• Outer body: ASTM A 395 Gr 60-40-18
• Face to face: ANSI B 16.10
• Spark test: at 15 KVA
• Flange connection: ANSI B 16.5
• Hydro test: at 29.8 kg/cm²

Features:

• Easy installation
• High strength
• Longer service life
• Ability to withstand extreme temperature & pressure conditions

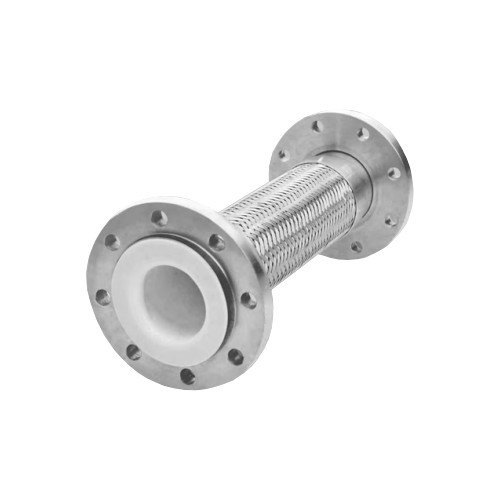

PTFE Lined Hose Pipe

• Fabricated using premium quality PTFE, liners and advanced technology, the range is widely used in varied chemical and high purity applications.
• Available in varied sizes & specifications, the range can also be obtained in customized specifications, as per the clients' requirements.

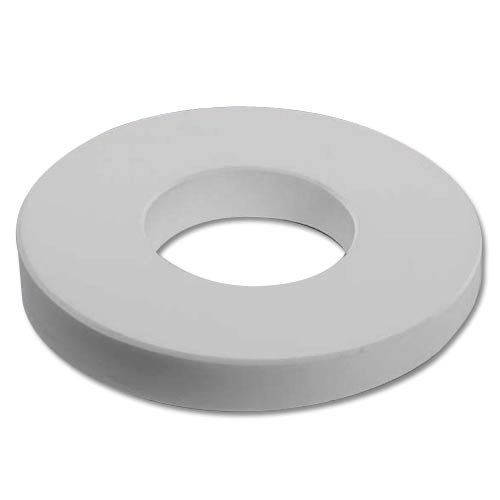

we are manufacturing Three Type of Spacers

• 1) Pure PTFE Spacer
• 2) CS PTFE Lined Spacer
• 3) CS PTFE Lined Spacer with Two Collars
• 4)Size of Spacers is from 25 NB to 300 NB

Features:

• Corrosion resistant finish
• Reliable performance
• Less maintenance

Technical Specifications:

• Size: 25 NB to 150 NB
• Temperature: FEP –Max 180⁰C PFA max: 200⁰C
• Flange connection: ANSI B 16.5
• Face to face: ANSI B 16.10
• Spark testing of PFA/FEP at 15 KVA
• Hydro test at 29.8 kg/cm²
• Material Test Certificate and Internal Test Reports are also provided along.

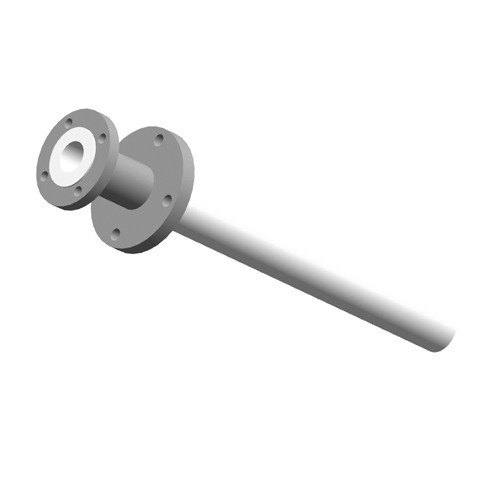

Features:

• Taking samples
• Charging the reactor under fluid level
• Dissolving grease in liquids
• Measuring liquid level
• Emptying vessel by pressurizing
